wifi clock Wireless network timing electronic clock 1.2 inch LED digital display time automatic timing alarm clock temperature

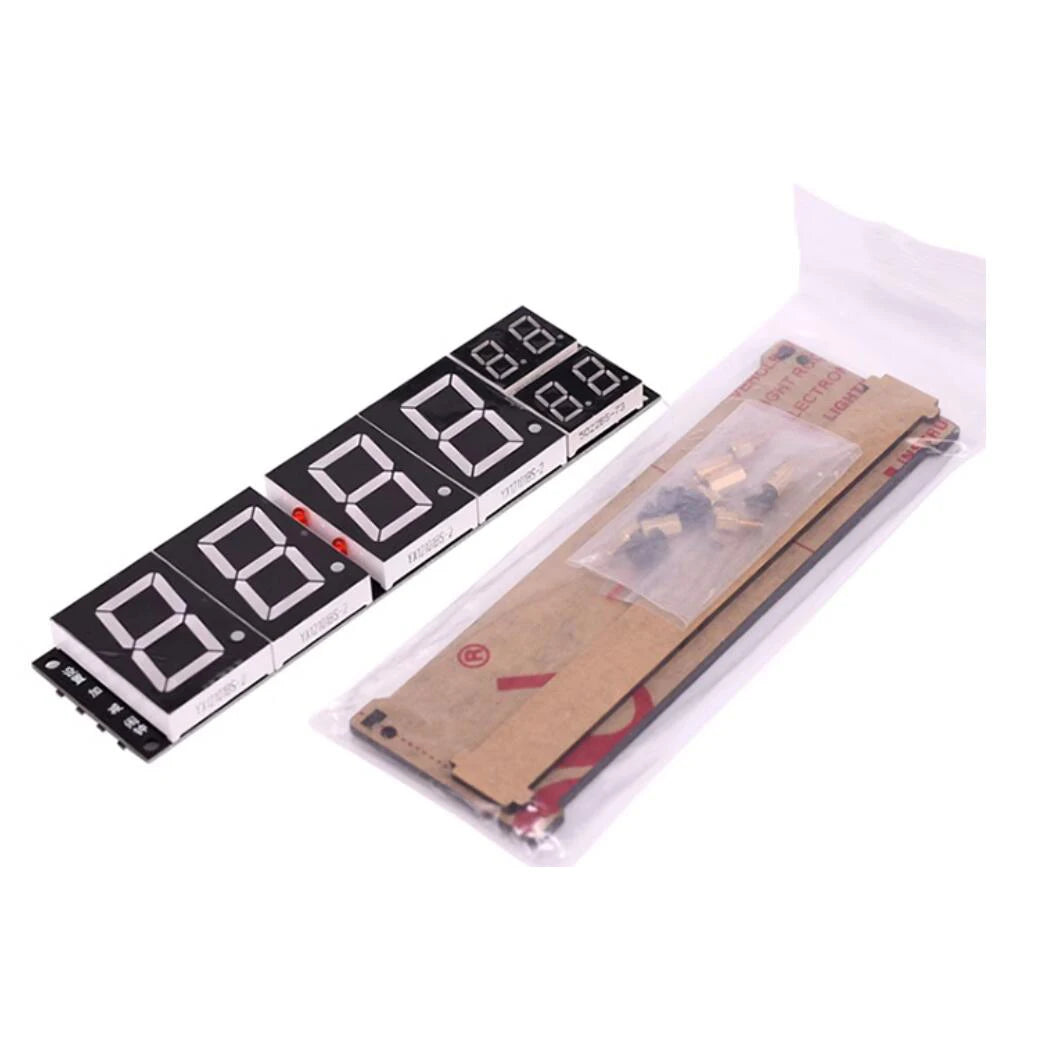

Shell installation video: https://v.youku.com/v_show/id_XNTg0OTA0MjE4NA==.html

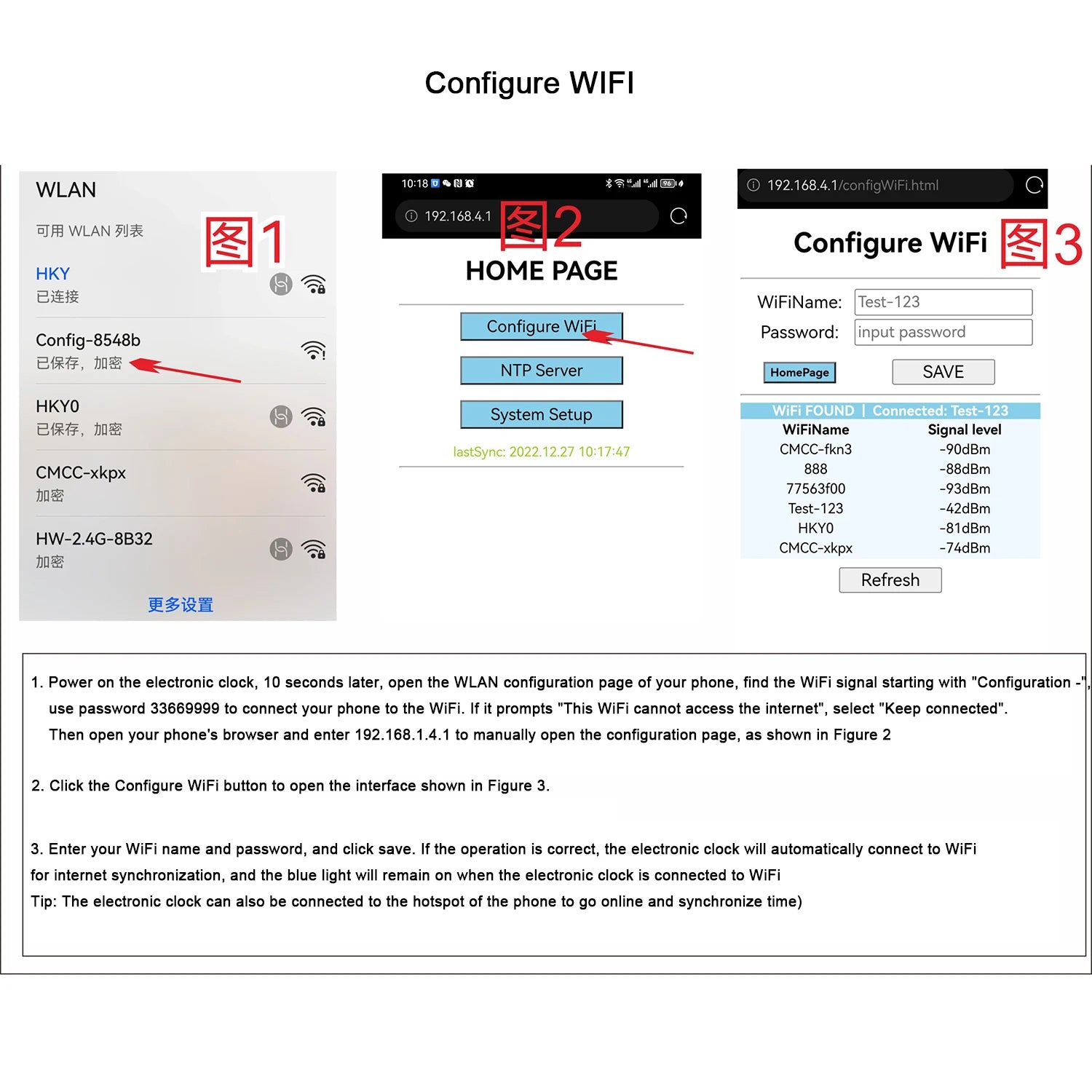

1. The new model has changed the network distribution mode by generating wifi hotspot and network address, address: 192.168.4.1

2. Added the time zone function. Set the time zone by parameter EE, and WIFI network timing is available all over the world.

Introduction:

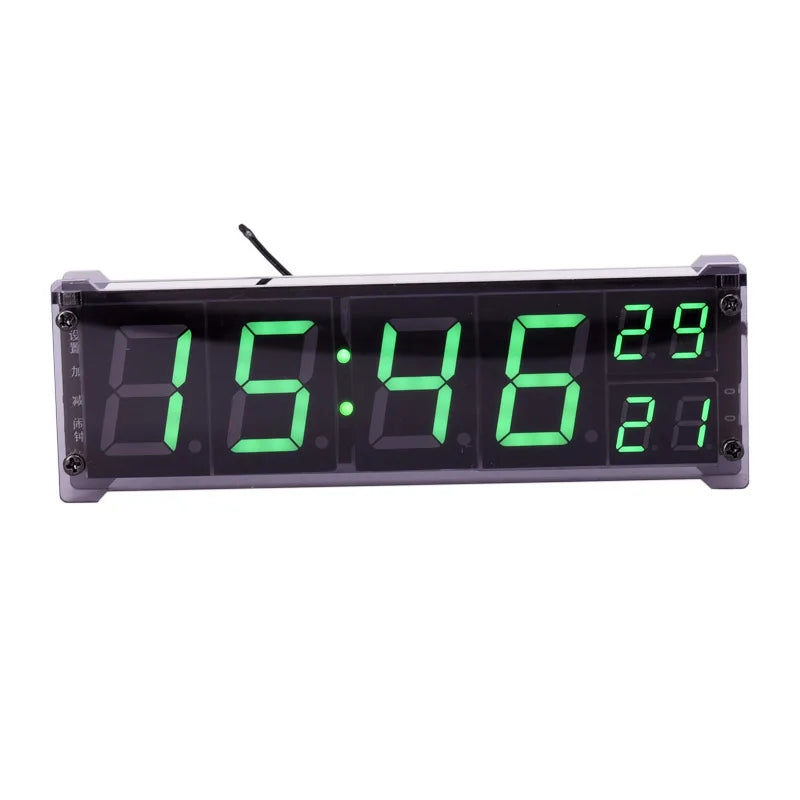

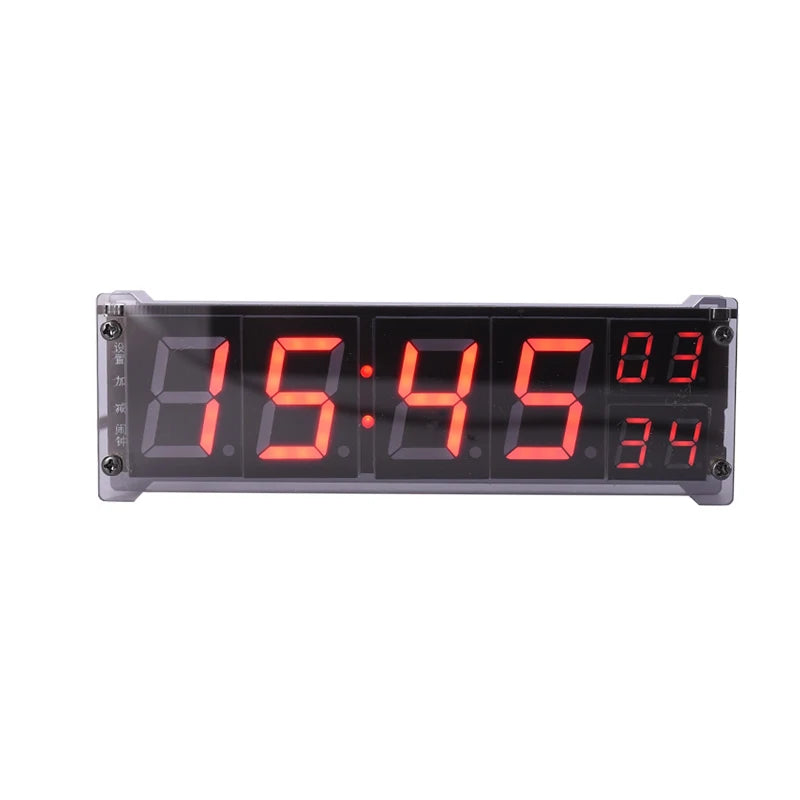

Use large 1.2 "digital tube with room temperature display and second display. Customized special translucent crystal shell, high-end atmosphere and grade.

Support 5V Android phone charger direct power supply.

With buzzer, there are 3 sets of practical alarm clock.

Support WIFI network automatic alignment, to ensure the accuracy of time.

The clock can only connect to a 2.4G WIFI network. (No WIFI network can also walk normally)

Parameters and Dimensions:

1. Power supply voltage :MICRO-USB 5V(can be powered by USB phone charger)

2, power supply current: more than 200ma DC power supply or charger

3, appearance size: 160*52*21mm [length * height * thickness]

4. Automatic photosensitive control, such as the digital tube will automatically darken when it is dark at night, and the brightness of the digital tube will be automatically improved during the day

5, with the back battery, with time memory function, external power does not affect the time walking

6. The display range of 2-digit digital tube on the right side of temperature measurement is -9°C to 99° C

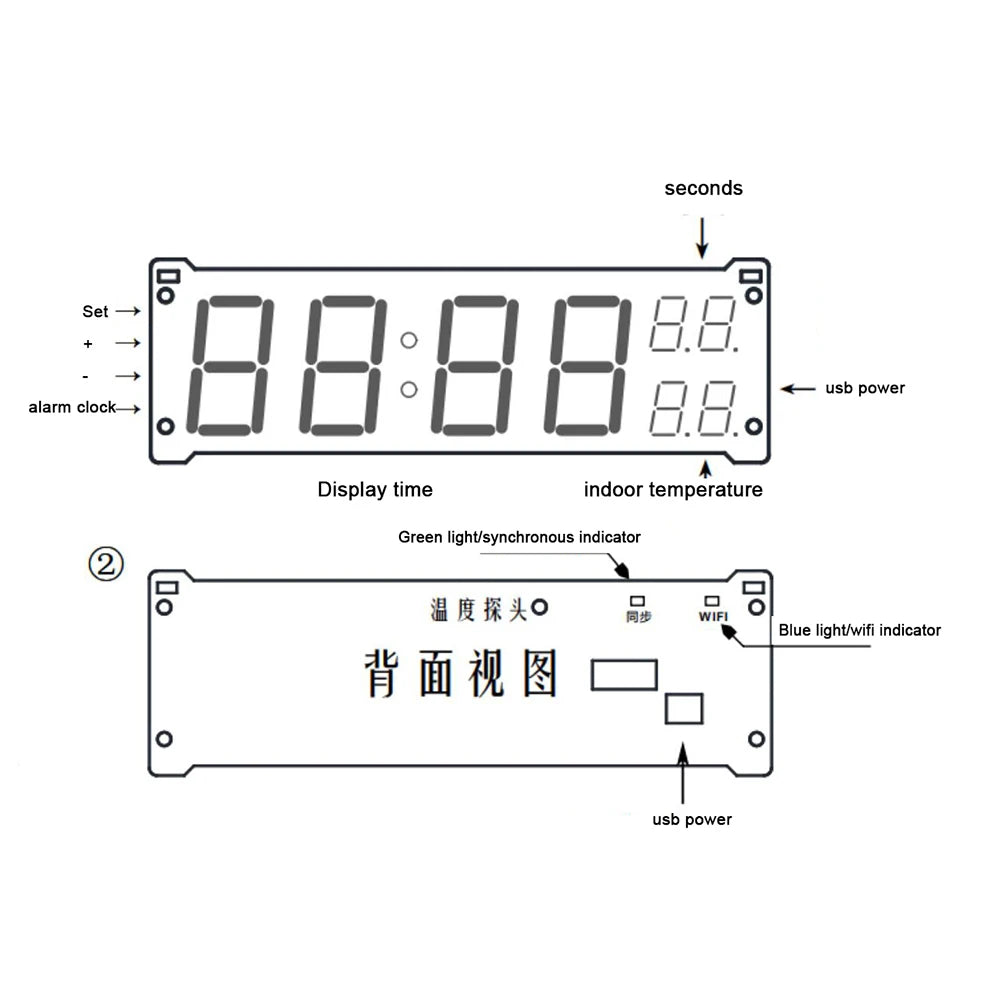

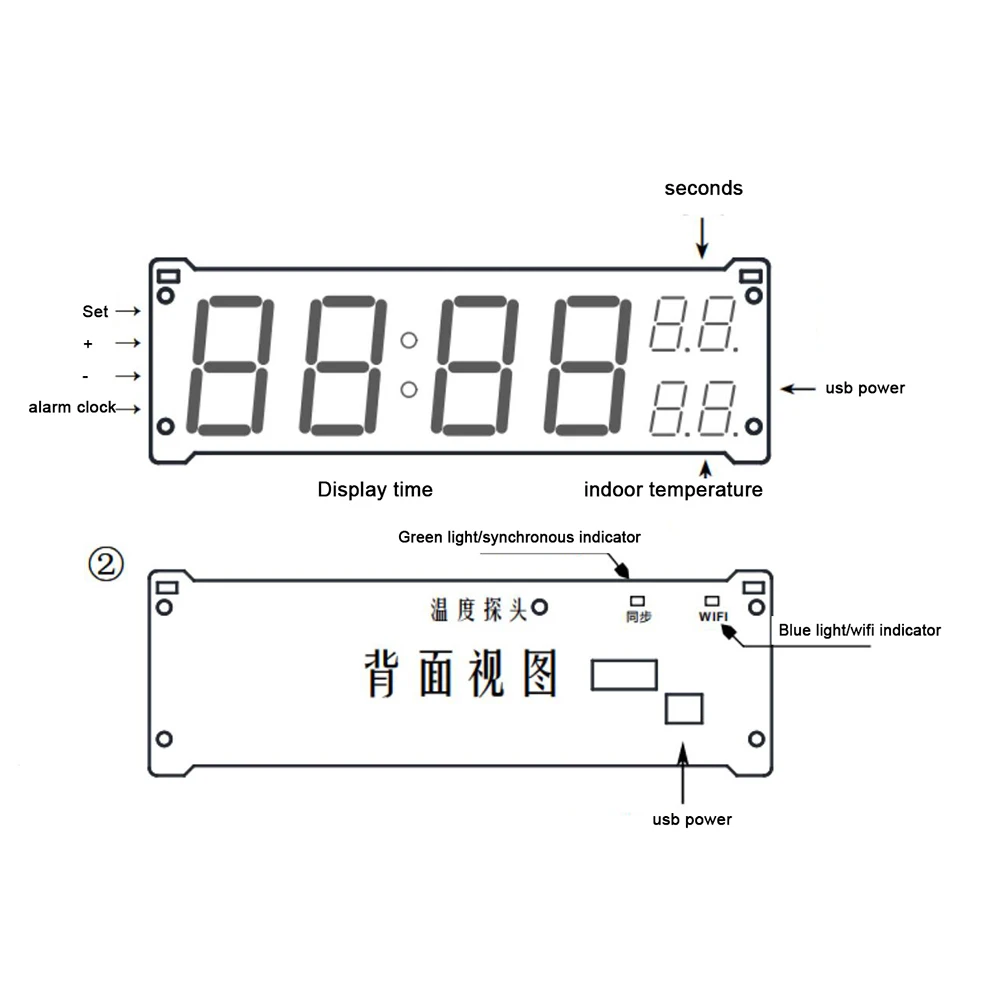

Details of key functions:

Setting key:

In the normal display state, pressing this key will enter the time date \ year Settings. Press the Set key and "minutes" will start to flash. Press the plus and minus keys to adjust the value. Then press the set key, "when" start flash, press the plus or minus key to adjust the value. Then press the set key to enter the date adjustment (note that the middle colon is not bright at this time), "day" start flashing, after setting the key "month" to start flashing, after setting the key "year" to start flashing, after setting the key to save all the data and return to the normal display state.

Plus key:

Under the normal display state, pressing this key will switch the four display states: [Time] → [date] → [temperature] → [Alternate cycle display]. (Note: The display item and switching interval under the state of alternating cycle display can be defined by the parameters of "dd "and "dF" respectively, see the explanation of "reducing key" for details)

Reduction key:

Under the normal display state, press this key to enter the custom parameter setting, and press the "plus" key to change the parameter value. Please refer to the following table for the meaning of the code.

Ac:

Temperature error calibration parameter. Positive represents increased, negative representative decreases, and the unit is degree, adjusting range is Ac | - 5 ~ 5. For example, if you think the displayed temperature is 1 degree higher than the actual temperature, set it to Ac:-1, so that the electronic clock will automatically subtract 1 degree before being displayed. (Note: If you do not have a standard thermometer to refer to, it is recommended to keep this item Ac: 0)

dd:

Customize the display item when the loop is displayed

[dd:0] Time + date + temperature da

[dd: 1] Time + temperature

[dd: 2] Time + date

dF:

The unit is second. The value ranges from 1 to 9. For example, dF:3 indicates that the switching interval is about 3 seconds.

LL:

Display brightness level, adjustment range is 1 to 7, LL:1 the darkest,LL:7 the brightest. (Note: Manual brightness adjustment can only take effect when AL is set to AL: 0, otherwise the electronic clock will automatically control the brightness of the display)

AL:

Automatic brightness control switch,AL: 0 is to turn off automatic brightness control,AL:1 is to turn on automatic brightness control. When it is set to AL: 1, the electronic clock will automatically detect the ambient light intensity to automatically change the display brightness.

Alarm clock:

In the normal display state, press this key to adjust the alarm time. This electronic clock has three sets of alarm clocks. When adjusting, pay attention to the A1, A2, A3 displayed in the upper right corner of the electronic clock. It represents 123 sets of alarm clocks. [Tip: If you only want to ring the alarm once a day, set A1,A2 and A3 alarm clocks to the same value, which is equivalent to using only one set of alarm clocks, that is, only ring once a day]
